Multimedia central controller for digital podium classroom management
MTC Pro
Media Central Controller "MTC PRO"
MTC PRO, a central controller, with built-in amplifier includes HDMI® signals switch, electric curtain, projector, light control, etc.
It supports up to 4 HDMI® inputs to matrix HDMI® outputs up to 4Kx2K@60HZ. Customized mode allows users to fulfill one touch start or end the mode control.
Independent volume adjustment of microphone, line in and record out to reach user friendly environment in the classrooms& conference.

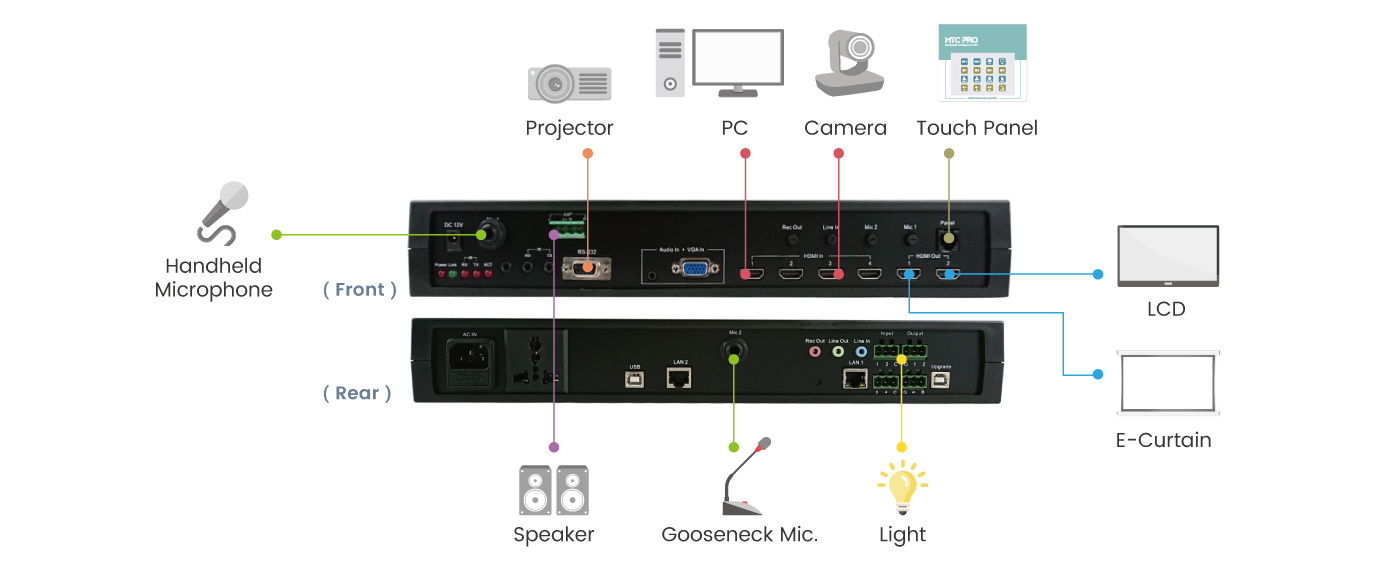

System Structure

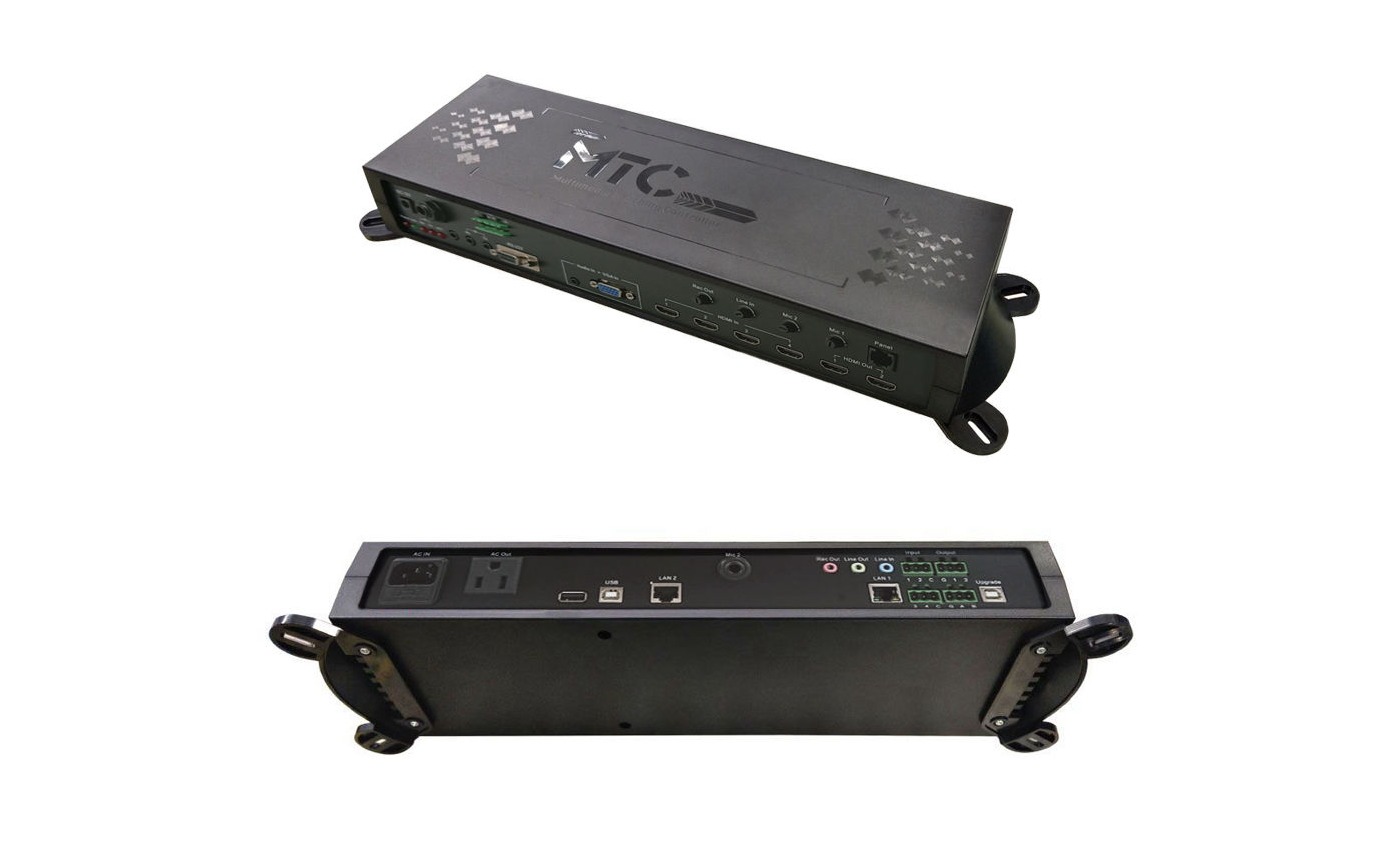

Wall-Mounted design to save the installation space
Features

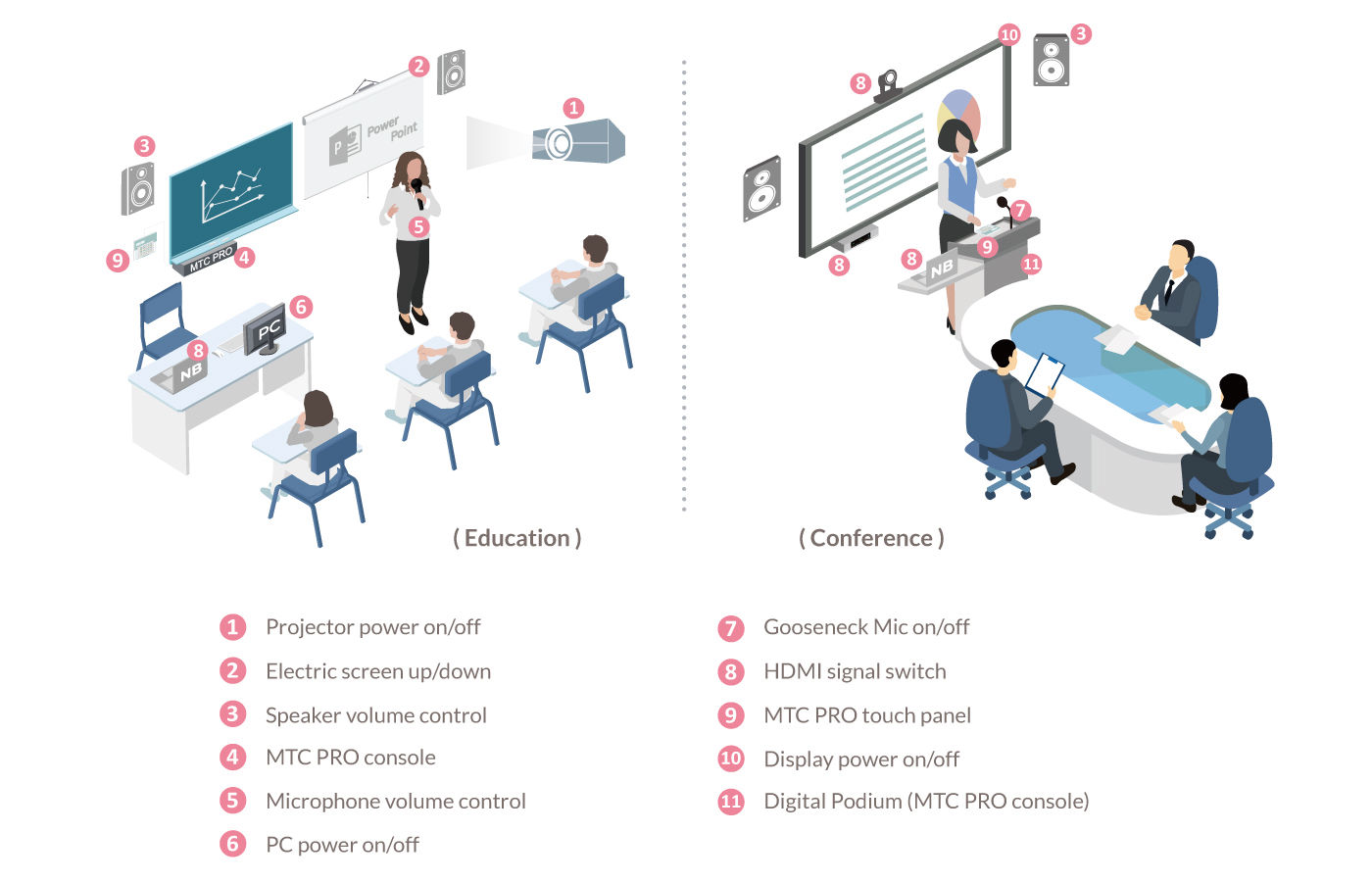

• Central Control of Multimedia Devices
Total control of media device such as HDMI® signal switch, PC power, electric screen, projector, light, volume control and so on by sensor touch panel.
• Customized Mode
Users can set common-use function in advance to reach one-touch to start or end control.
• Multiple Audio Inputs& Outputs
With 2 microphone inputs (6.3mm), one line in, one line out, one record out.
• Independent Volume Adjustment
Independent volume adjustment of microphones line in and record out to reach user friendly environment in the classroom and conference.
• IR & RS232 & RS485 & I/O Integration
Compatible with multimedia devices by RS485, RS232, I/O, IR , 3.5mm audio jack, 6.3mm audio jack such as projector, electric screen, handheld microphone, light on&off, PC power on&off.
• HDMI (4Kx2K) Matrix Outputs
Built-in 4x2 HDMI® 2.0 (4Kx2K, 60HZ) signal matrix output.
• Wall-Mounted Design

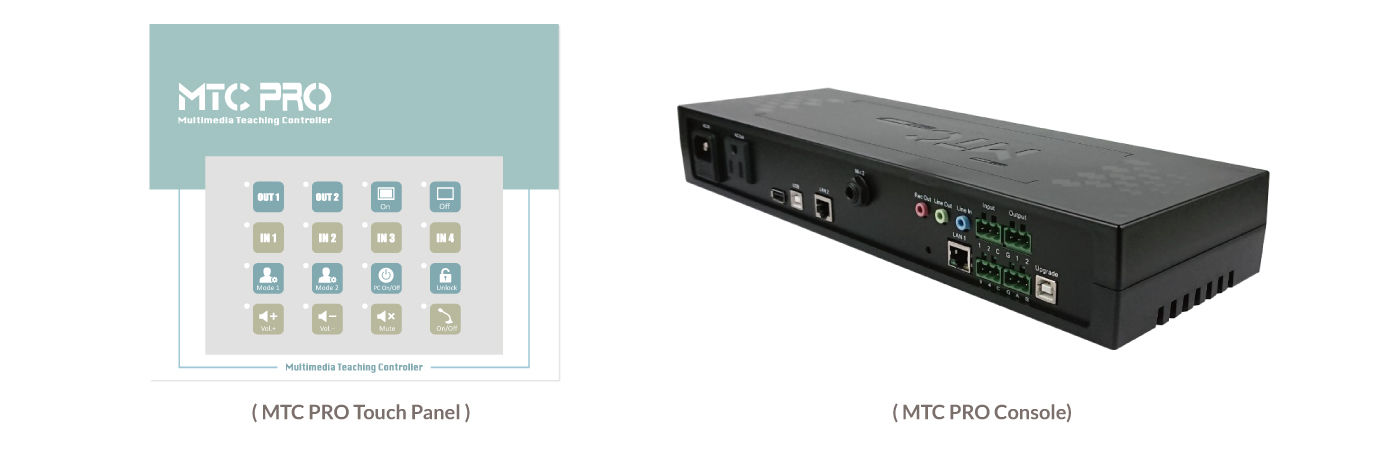

Flexible installation of wall-mounted design to set console and touch panel in different places.
• WEB-based Management (Optional)
WEB control allows users to monitor devices’ status, scheduling & account authorization, etc. anytime anywhere.
